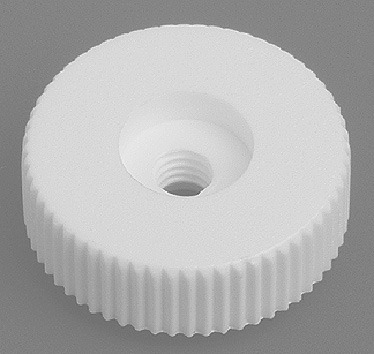

Kartelmoer PA DIN 467 fine karteling
productgroep code: 005260.
[ gerelateerde producten ]
Volgens DIN467

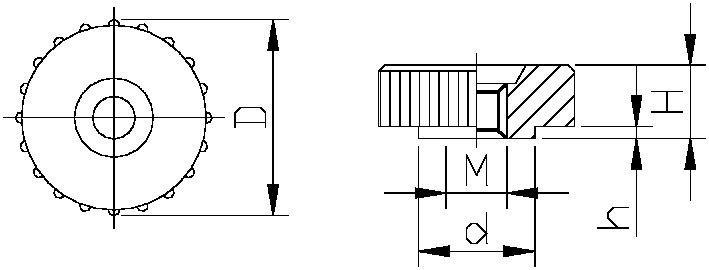

| Artikelcode | D | d | H | h | |||||
|---|---|---|---|---|---|---|---|---|---|
| 005260.012000000.001 | 12 | 8,5 | 5,0 | 1,5 | M 3 | wit | |||
| 005260.014040000.001 | 14 | 8,5 | 5,0 | 1,5 | M 4 | wit | |||
| 005260.016000000.001 | 16 | 10,0 | 6,0 | 1,5 | M 4 | wit | |||
| 005260.016050000.001 | 16 | 10,0 | 6,0 | 1,5 | M 5 | wit | |||
| 005260.016060000.001 | 16 | 10,0 | 6,0 | 1,5 | M 6 | wit | |||
| 005260.019050000.001 | 19 | 10,0 | 7,5 | 1,5 | M 5 | wit | |||
| 005260.019060000.001 | 19 | 10,0 | 7,5 | 1,5 | M 6 | wit | |||
| 005260.020000000.001 | 20 | 10,0 | 7,5 | 1,5 | M 4 | wit | |||
| 005260.020060000.000 | 20 | 10,0 | 7,5 | 1,5 | M 6 | wit | |||
| 005260.024080000.001 | 24 | 13,0 | 7,5 | 1,5 | M 8 | wit |
