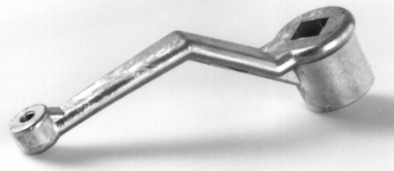

Handslinger DIN 468 aluminium gebogen
productgroep code: 200100.
[ gerelateerde producten ]Ook afwijkende uitvoeringen leverbaar

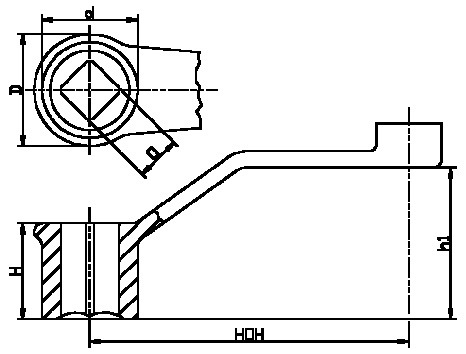

Artikelcode | HOH | H | h1 | D | d | ||||
---|---|---|---|---|---|---|---|---|---|
200100.100120809.002 | 100 | 28 | 48 | 33 | 28 | M 8 | #12 | ||
200100.100140809.002 | 100 | 28 | 48 | 33 | 28 | M 8 | #14 | ||
200100.125100806.002 | 125 | 34 | 55 | 39 | 34 | M 8 | Ø10 | ||
200100.125110806.002 | 125 | 34 | 55 | 39 | 34 | M 8 | Ø11 | ||
200100.125140809.002 | 125 | 34 | 55 | 39 | 34 | M 8 | #14 | ||
200100.125200806.002 | 125 | 34 | 55 | 39 | 34 | M 8 | Ø20 | ||
200100.160171009.002 | 160 | 38 | 65 | 44 | 38 | M10 | #17 | ||
200100.160201006.002 | 160 | 38 | 65 | 44 | 38 | M10 | #17 | ||
200100.200191209.002 | 200 | 44 | 78 | 50 | 44 | M12 | #19 |
